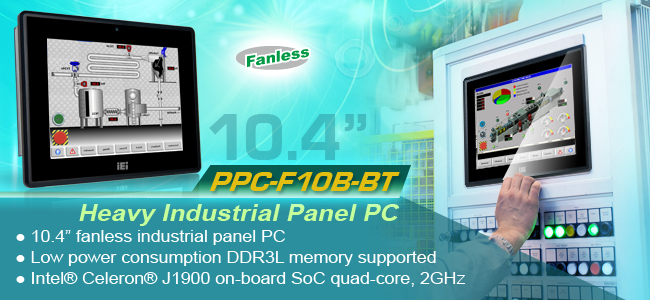

威强推出 PPC-F10B-BT 重工业平板电脑
[ Date: 2015-10-20 17:17]




TANK-6000-C226



   特征

10.4” 无风扇工业平板电脑支持低功耗 DDR3L 内存
Quad-core Intel® Celeron® processor J1900 2.0GHz前面板符合 IP 65
支持 SSD mSATADual GbE 支持备份
9 V~30 V wide DC input-10°C~50°C 宽温




   规格


型号PPC-F10B-BT
LCDLCD 显示10.4”
最大分辨率800 (W) x 600 (H)
亮度 (cd/m²)400
对比率700:1
LCD 颜色16.2M
Pixel Pitch (mm)0.264(H) x 0.264(V)
Viewing Angle (H-V)160° / 140°
Backlight MTBF (Hrs)30000
主板CPUIntel® Celeron® J1900 on-board SoC quad-core, 2GHz
RAM2 x 204-pin DDR3L SO-DIMM slot (max. 8GB)
触摸触摸屏 & 控制器5-wire resistive type flat touchscreen
面板硬度3H
输入接口I/O 接口 & 开关1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB9 connector) (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9 V~30 V lockable power jack
扩展1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
1 x Half-size PCIe Mini slot for Wi-Fi modules
Wireless LANSMA antenna (optional)
存储SSDmSATA
HDD1 x 2.5” HDD bay
物理属性材质Aluminum front bezel
安装Stand/ Panel Mount/Rack Mount/ VESA 75*75/100*100 Mount
外壳颜色Black C
尺寸 (mm)232.4 x 285.2 x 44
重量 (Net)1.77kg
开孔尺寸 (mm)267.2 x 214.4
环境操作温度
(with air flow)
-10°C~50°C (14°F~122°F)
存储温度-20°C~60°C (-4°F~140°F)
湿度10% to 95% (non-condensing)
IP 等级IP 65 compliant front panel
安规和 EMCCE & FCC Class A certified
电源输入Power Supply9 V~30 V DC
功耗40W




    完整的 I/O 接口







   尺寸









   订购信息


料号描述
PPC-F10B-BT-J1/2G/R-R1010.4” 400 cd/m² SVGA panel PC with Intel® Celeron® processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10




   可选配件


名称PPC-F10B
ARMARM-11-RS
StandSTAND-100-RS
STAND-B08
STAND-C12-R10
Wall Mount KitAFLWK-12
Panel Mount KitFPK-07-R10
WiFi KitPPC-WL-KIT02-R11





   包装清单


名称数量备注
PPC-FxxB-BTi Panel PC1
User Manual & Driver CD1
One Key Recovery CD1
Touch Pen1Resistive type models only
P/N: 43125-0002C0-00-RS
Power Cord1Part numbers varies by regions
Screw Pack1Including necessary screws
Power Adapter19V~36V DC
