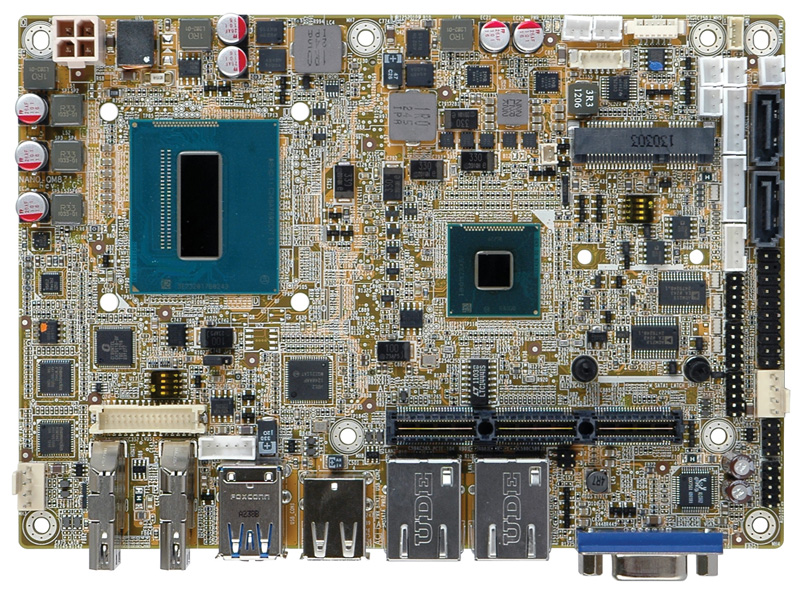

 产品特征 | | | 1. 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor
2. IEI jumper-less function
3. Triple independent display via dual HDMI+VGA, dual HDMI+LVDS or HDMI+LVDS+VGA
4. DDR3/DDR3L 1600/1333 MHz SDRAM support up to 8GB
5. COM, USB 3.0, SATA 6Gb/s and audio support
6. Intel® GbE LAN with Intel® AMT 9.0 support
7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
| |
| 产品规格 | | | | CPU | Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support
(2.4GHz, quad-core, 6MB cache, TDP=47W)
Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support
(2.7GHz, dual-core, 3MB cache, TDP=37W)
Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W)
Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache, TDP=37W)
Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support
(1.6GHz, dual-core, 3MB cache, TDP=25W) (by request)
Intel® mobile Core™ i3-4102E on-board processor
(1.6GHz, dual-core, 3MB cache, TDP=25W) (by request)
Intel® mobile Celeron® 2002E on-board processor
(1.5GHz, dual-core, 2MB cache, TDP=25W) (by request) | | 芯片组 | Intel® QM87 | | BIOS | UEFI BIOS | | 内存 | One 204-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 8GB | | I/O接口 | 2 x RS-232
1 x RS-422/485
1 x 6-pin wafer for PS/2 KB/MS
2 x USB 2.0 (by pin header)
2 x USB 2.0 (on rear I/O)
2 x USB 3.0 (on rear I/O)
2 x SATA 6G/s with 5V SATA power connector (RAID 0,1 supported) | | 数字I/O | 8-bit digital I/O (4-bit input, 4-bit output) | | Super I/O | Fintek F81866 | | TPM | 1 x 20-pin (2x10) header | | SMBus | 1 x 4-pin (1x4) wafer | | 音频 | Realtek ALC662 HD Audio codec | | 显示接口 | VGA (up to 1920x1200@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual HDMI (up to 2500x1600@60Hz) | | LAN | GbE1: Intel® I217LM PHY with Intel® AMT 9.0 support
GbE2: Intel® I211-AT PCIe controller | | 扩展槽 | 1 x Full-size PCIe Mini card slot (supports mSATA, SATA 6GB/s signal only)
1 x PCIe/104 Type 2 slot | | 看门狗定时器 | Software programmable, support 1~255 sec. system reset | | 电源 | 12V only DC input
1 x Internal 4-pin (2x2) power connector
Support AT/ATX mode | | 风扇 | 1 x 4-pin CPU fan connector
1 x 4-pin system fan connector | | 功耗 | 12V@4.78A (Intel® Core™ i7-4770EQ,2.4GHz CPU with 4GB 1333MHz DDR3 memory) | | 图形 | Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode | | 工作温度 | -10°C ~ 60°C | | Storage Temperature | -20°C ~ 60°C | | 相对湿度 | 5% ~95%, non-condensing | | 尺寸 | 115 mm x 165 mm | | 重量 | GW:850g / NW:350g | | Front Panel | 1 x 6-pin (1x6) wafer for power LED & HDD LED
1 x 2-pin (1x2) wafer for power button
1 x 2-pin (1x2) wafer for power reset | | LAN LED | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED |
|
|
| |
| 订购信息 | | | | 产品名称 | 描述 | | NANO-QM871-i7-R10 | EPIC SBC supports Intel® 22nm Mobile Core™ i7-4700EQ onboard Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, AMT 9.0, USB 3.0, PCIe Mini, PCI/104-Express™, SATA 6Gb/s and Audio | | NANO-QM871-i5-R10 | EPIC SBC supports Intel® 22nm Mobile Core™ i5-4400E onboard Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, AMT 9.0, USB 3.0, PCIe Mini, PCI/104-Express™, SATA 6Gb/s and Audio | | NANO-QM871-i3-R10 | EPIC SBC supports Intel® 22nm Mobile Core™ i3-4100E onboard Processor with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCI/104-Express™, SATA 6Gb/s and Audio | | NANO-QM871-C-R10 | EPIC SBC supports Intel® 22nm Celeron 2000E on-board Processor (37W) with VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCI/104-Express™, SATA 6Gb/s and Audio | | 32000-070301-RS | Dual-port USB 2.0 cable | | 32205-003800-100-RS | RS-422/485 cable, 200mm | | 32006-001100-100-RS | PS/2 KB/MS Y-cable with bracket, 135mm | | TPM-IN01-R11 | 20-pin Infineon TPM module, software management tool, firmware V3.17 |
|
|
| |
| 包装清单 | | | | 1 * NANO-QM871 single board computer | 2 * SATA with power cable kit (P/N:32801-000201-100-RS) | | 1 * Audio cable (P/N:32007-002600-100-RS) | 1 * Power cable (P/N:32100-087100-RS) | | 2 * RS-232 cable (P/N:32200-000049-RS) | 1 * QIG (Quick Installation Guide) | | 1 * CPU cooler | 1 * Utility CD | | 1 * One Key Recovery CD | |
|
|
