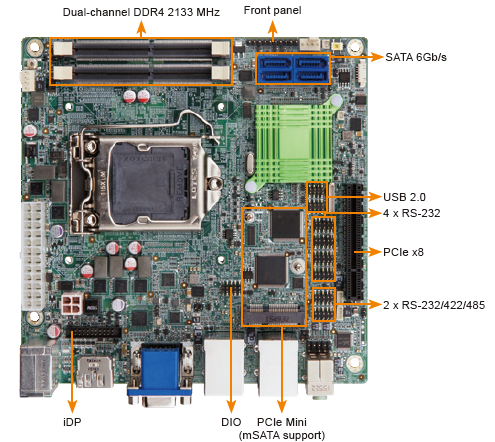

> 产品 > ITX工业主板 > KINO-AQ170| ● Mini ITX form factor with LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor and DDR4 2133MHz memory support |
|
● Support HDMI 2.0 (4096x2160@60Hz)
|
|
● Dual Intel® GbE support Intel® AMT 11.0
|
|
● Triple display via HDMI 2.0/HDMI/DP
1.2/VGA/iDP
|
|
● High speed I/O interface for USB 3.0, SATA
6Gb/s and mSATA support
|
|
● Support IEI jumpless
|
产品规格
|
Display Output
|
Triple independent displays |
| 1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz) | |
| 1 x HDMI/DP (up to 3840x2160@60Hz) | |
| 1 x VGA by CH7517 DP to VGA converter (up to 1920x1200) | |
| 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz) | |
|
CPU
|
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
|
Chipset
|
Intel® Q170 |
|
Memory Max.
|
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB) |
|
Ethernet
|
LAN1: Intel® I219LM with (Intel® AMT 11.0 support) |
| LAN2: Intel® I211 PCIe controller with NCSI support | |
|
Digital I/O
|
1 x 8-bit digital I/O (2x5 pin) |
|
Audio
|
Realtek ALC662 HD Audio codec |
| 2 x Audio jacks (line-out, mic-in) on rear IO | |
| 1 x Front audio (2x5-pin) | |
|
Power consumption
|
3.3V@1.62A, 5V@3.54A, 12V@8.17A, 5VSB@3.6A |
| (Intel® Core™ i7 6700K 4.0GHz CPU with 16 GB (two 8 GB) 2133 MHz DDR4 memory) | |
|
Power Supply
|
ATX/AT Power Supply |
|
Operating Temperature
|
-20°C ~ 60°C |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Dimensions
|
170mm x 170 mm |
|
Weight
|
GW:900g, NW: 450g |
|
Expansion Slots
|
1 x Full-size PCIe Mini slot (support mSATA) |
| 1 x PCIe x8 slot | |
|
I/O Interface
|
SMBus ((1 x 4 pin)) |
| 4 x Internal USB 2.0 ((2 x 4pin,P=2.0)) | |
| 4 x Internal RS-232 ((2 x 5pin,P=2.0)) | |
| 2 x RS-422/485 ((1 x 4 pin, P=2.0, colay with COM4)) | |
| 1 x I²C ((1 x 4 pin)) | |
| 1 x SMBus ((1 x 4 pin)) | |
| 4 x SATA 6Gb/s ((RAID 0/1/5/10 support)) |
订购信息
| KINO-AQ170-R10 | Mini-ITX Motherboard supports 14nm LGA1151 Intel® Skylake CPU Intel® Q170,HDMI2.0/DP/VGA, SATA, Dual Intel®GbE, USB3.0,PCIE mini, HD audio and RoHS |
