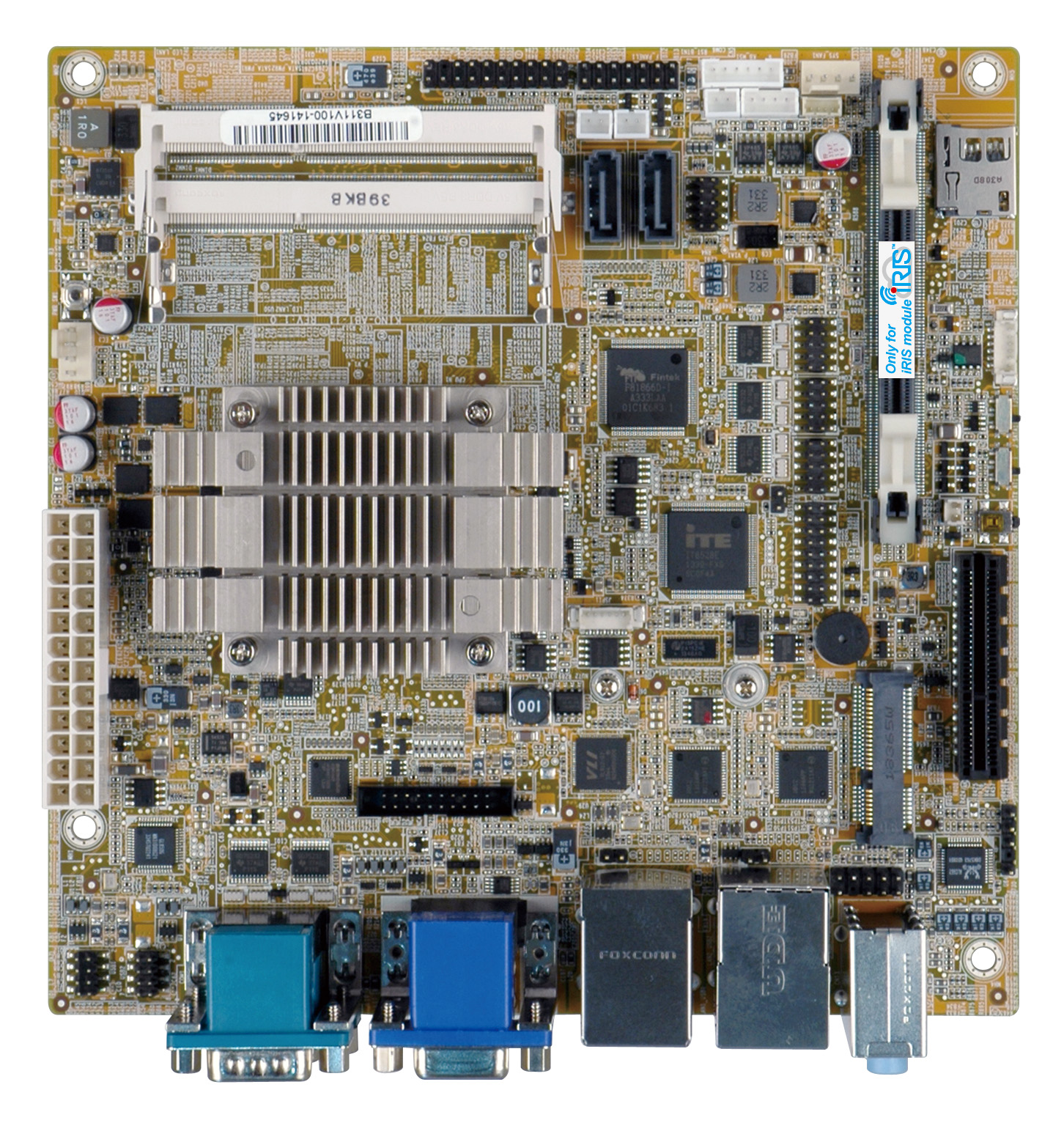

KINO-ABT-i2
Mini-ITX SBC 支持 Intel® 22nm Atom™ 或 Celeron® 板载 SoC, VGA/HDMI/iDP, Dual Intel® PCIe GbE, USB 3.0, SATA, HD 音频, iRIS-2400及 RoHS


产品特征 产品特征
  1. Mini-ITX SBC 支持 Intel® 22nm Atom™ 或 Celeron® 板载 SoC
2. 1066/1333 MHz 1.35V DDR3L SDRAM 高达 8 GB
3. 通过 VGA, HDMI 及 iDP 支持独立双显
4. 支持 COM, USB 3.0, SATA, PCIe Mini, mSATA 及 高清音频
5. 通过 iRIS-2400 模块支持 IPMI 2.0
6. 支持 Intel® VT-x 技术
7. 威强电一键恢复解决方案支持快速创建恢复 OS

产品规格 产品规格

BIOSAMI UEFI BIOS
内存支持2 x 204-pin 1066/1333 MHz 双通道 DDR3L SO-DIMM (系统最大支持8GB)
I/O接口1 x PS/2 KB/MS
1 x microSD 插槽 (E38XX SKU only)
2 x USB 3.0 (on rear I/O)
6 x USB 2.0 (2 on rear I/O, 4 by pin header)
1 x RS-422/485 (by pin header)
5 x RS-232 (2 on rear I/O, 3 by pin header)
2 x SATA 3Gb/s 以及 5V SATA 电源接口 (no RAID)
数字I/O8-bit 数字I/O (4-bit 输入, 4-bit 输出)
Super I/OFintek F81866D-I
SMBus1 x 4-pin (1x4) wafer
音频Realtek ALC662 HD 编解码器 支持 5.1 音频
风扇1 x 4-pin 智能风扇接口
1 x 4-pin 系统风扇接口
功耗5V@1.71A, 12V@0.08A, Vcore_12V@0.27A, 3.3V@0.34 (Intel® Celeron® J1900 CPU, 2 x 4GB 1333 MHz DDR3 内存)
工作温度-20°C ~ 60°C
相对湿度5% ~95%, 无冷凝
尺寸170mm x 170mm
重量GW: 900g/NW: 450g

订购信息 订购信息

产品名称描述
KINO-ABT-i2-J19001-R10 Mini-ITX SBC supports Intel® Celeron® quad-core processor J1900 (10W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS
KINO-ABT-i2-N29301-R10 Mini-ITX SBC supports Intel® Celeron® quad-core processor N2930 (7.5W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS
KINO-ABT-i2-N28071-R10 Mini-ITX SBC supports Intel® Celeron® dual-core processor N2807 (4.3W), VGA/HDMI/iDP, dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS
KINO-ABT-i2-E38XX1-R10 Mini-ITX SBC supports Intel® Atom™ processor E38XX, VGA/HDMI/iDP, Dual Intel® PCIe GbE, SATA, USB 3.0, HD Audio, iRIS-2400 and RoHS
This item is by order production, MOQ: 100
32205-003800-300-RS RS-422/485 cable
32200-000049-RS RS-232 cable, 200mm, DB-9 2x5P P=2.0
32006-000300-100-RS PS/2 KB/MS Y-cable without bracket
32205-003800-300-RS RS-422/485 cable, 200mm
DP-LVDS-R10 DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector)
DP-HDMI-R10 DisplayPort to HDMI converter board (for IEI iDP connector)
DP-DVI-R10 DisplayPort to DVI-D converter board (for IEI iDP connector)
DP-VGA-R10 DisplayPort to VGA converter board (for IEI iDP connector)
DP-DP-R10 DisplayPort to DisplayPort converter board (for IEI iDP connector)
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17

订购信息 包装清单

1 * KINO-ABT-i2 single board computer2 * Dual-port USB cable (P/N:19800-003100-300-RS)
1 * SATA cable (P/N:32801-000201-300-RS)1 * IO shielding
1 * QIG (Quick Installation Guide)1 * Utility CD
