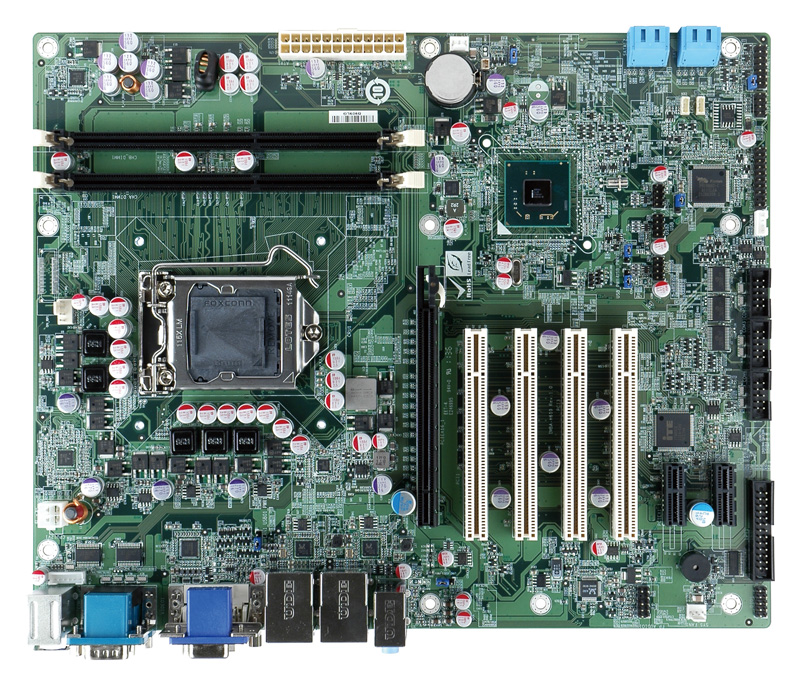

IMBA-H610
ATX 主板支持基于 Intel® H61的 LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD 音频和RoHS


产品特征 产品特征
  1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® 处理器
2. 双通道 DDR3 SDRAM 1333 MHz 支持可达 16 GB
3. Intel® HD Graphics 技术集成高性能图形和媒体处理
4. 通过 TPM 模块支持 TPM V1.2 硬件安全功能
5. 威强一键恢复(One Key Recovery)解决方案可快速创建OS 备份和恢复

产品规格 产品规格

CPULGA1155 socket 支持 Intel® Core™ i7/i5/i3/Pentium®/Celeron 处理器
芯片组Intel® H61
BIOSUEFI
内存2 x 240-pin 1333/1066MHz 双通道 unbuffered DDR3 SDRAM DIMM (系统最大支持16GB)
以太网Dual Realtek RTL8111E PCIe GbE controllers, LAN1支持 ASF2.0
I/O接口5 x RS-232
1 x RS-422/485
1 x LPT
4 x SATA 3Gb/s
1 x PS/2 KB/MS
10 x USB 2.0 (4 x 后面板 IO, 6x pin header)
数字I/O8-bit 可编程 I/O
Super I/OFintek F81866
TPM1 x 20-pin header
SMBus1 x 4-pin wafer
音频Realtek ALC662 HD 音频编码 (音频输入,音频输出,麦克风)
显示接口VGA 集成于Intel® H61
DVI-D 集成于Intel® H61
扩展槽1 x PCIe x16 插槽
2 x PCIe x1 插槽
4 x PCI 插槽
看门狗定时器软件可编程支持 1~255 sec.系统复位
电源AT / ATX 电源
风扇1 x 4-pin CPU 风扇接口
2 x 3-pin 系统风扇接口
功耗3.3V@1.27A, 5V@3.87A , 12V@0.54A, Vcore@7.67A, 5VSb@0.15A (Intel® Core™ i7-2600K 3.40GHz CPU 支持 2 个 1333MHz 2GB DDR3 内存)
视频引擎Intel® HD Graphics 2000/3000 (基于 CPU 类型)
支持 DX10.1 和 OpenGL3.0
Full MPEG2, VC1, AVC Decode
工作温度-10°C ~ 60°C
相对湿度5% ~95%,无冷凝
尺寸244mm x 305mm
重量GW:1200g, NW: 700g
Front Panel1 x 前面板接口(电源 LED, HDD LED, 扬声器,电源按钮,复位按钮)
I2C1 x 4-pin wafer

订购信息 订购信息

产品名称描述
IMBA-H610-R10 ATX Motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS
19800-003100-100-RS Dual-port USB cable with bracket
32200-074800-RS RS-422/485 cable, 200mm
19800-000051-RS RS-232 cable, 230mm
32102-000100-200-RS SATA power cable
19800-000049-RS LPT cable
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA1155, Quad core 2.3GHz, 6M Cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA1155, Dual core 2.7GHz, 3M Cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2100T Intel® Core™ i3-2100T processor, LGA1155, Dual core 2.5GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium G620T processor, LGA1155, Dual core 2.2GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron G440 processor, LGA1155, Single core 1.6GHz, 1M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156B-RS High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

订购信息 包装清单

1 * IMBA-H610 Single Board Computer4 * SATA Cable (P/N:P/N: 32000-062800-RS)
1 * I/O Shielding (P/N:P/N: 45014-0008C0-00-RS)1 * Mini Jumper Pack
1 * Utility CD1 * QIG
