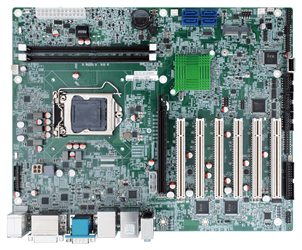

IMBA-H110
ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,Celeron® and Pemtium® processor



产品特征 产品特征

● LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR4 2133 MHz
● Support dual displays with DVI-I/HDMI+DP/iDP
● Support USB 3.0 and SATA 6Gb/s
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

产品规格 产品规格

Display OutputDual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
ChipsetIntel® skylake H110
Memory Max.Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
EthernetLAN1: Intel® I219V PHY
LAN2: Intel® I211 PCIe controller
Digital I/O8-bit digital I/O (2x5 pin)
AudioRealtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front audio (2x5 pin)
Power consumption3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A
(Intel® Core™ i7 6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory)
Power SupplyATX/AT Power Supply
Operating Temperature-20°C ~ 60°C
Humidity5% ~ 95%, non-condensing
WeightGW:1200g, NW: 700g
Expansion Slots1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot
I/O Interface2 x Internal RS-232
RS-422/485((1 x 4 pin, P=2.0, colay with COM4))
1 x LPT((2 x 13 pin, P=2.54))
4 x SATA 6Gb/s((support hot plug))
1 x KB/MS((1 x 6 pin))
1 x I2C((1 x 4 pin))
1 x SMBus((1 x 4 pin))
1 x LPT((2 x 13 pin, P=2.54))
3 x Internal USB 2.0
2 x Internal RS-232/422/485((2 x 5 pin, P=2.54, colay with COM5,6))

订购信息 订购信息

IMBA-H110-R10ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
