FCD-301

Enlarge image

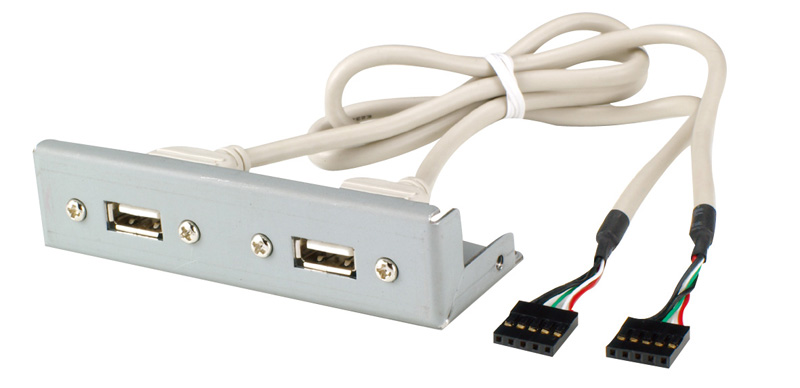

3.5"带2个USB的紧凑型驱动器架

Datasheet(PDF)    Download (Deriver/BIOS/Manual/QIG)

产品规格 产品规格

Colors White or Black
Length 60cm
Pin definition
PIN1 PIN2 PIN3 PIN4 PIN5
VCC1 D1F- D2F+ GND GND
Support Support standard 3.5" drive bay
General Specification 5-pin female connector to CPU board's pin header
The most suitable USB cable for iEi CPU board

订购信息 订购信息

产品名称 描述
FCD-301W 3.5" Compact drive bay with USB port, White color
FCD-301B 3.5" Compact drive bay with USB port, Black color
