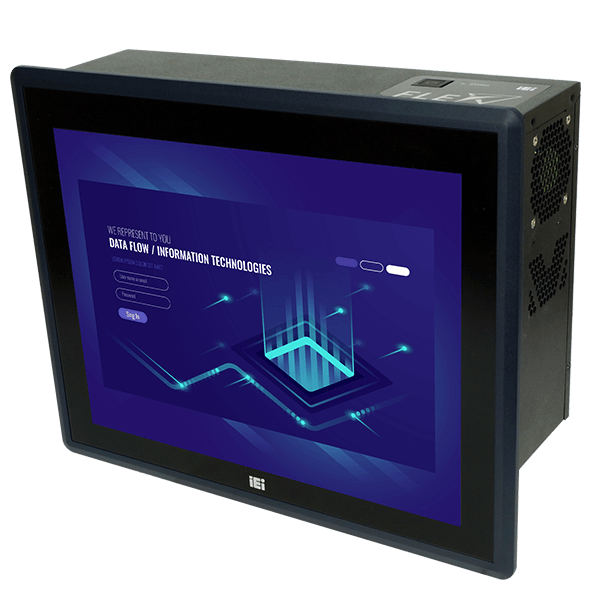

> 产品 > 重工业平板电脑 > PPC-F15C-Q370| ● 15” 平板电脑 配备 第八代 LGA 1151 Intel® Core™ i7/i5/i3 和 Pentium® 处理器 |
|
● 四个 热插拔且可访问的硬盘驱动器托架, 支持 RAID 0/1/5/10
|
|
● 两个 PCIe 3.0 by 4 和 两个 PCIe 3.0 by 8 插槽
|
|
● 支持双 M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
|
|
● 支持 QTS-网关
|
产品规格
|
Form factor
|
LGA 1151 第八代 Intel CoreTM i7/i5/i3 处理器 |
| Intel® 300 系列芯片组 Q370 | |
|
LCD Size
|
15” |
|
Brightness(cd/m2)
|
450 |
|
Max Resolution
|
1024x768 |
|
Contrast Ratio
|
800:01:00 |
|
Backlight MTBF(hrs)
|
70000 |
|
Cooling method / System Fan
|
系统风扇 |
|
CPU
|
第八代 LGA1151 Intel® Core™ i7/i5/i3 和 Pentium® CPU |
|
Chipset
|
Intel® 300 系列芯片组 Q370 |
|
Memory Max.
|
两个 288-pin 2666/2400 MHz 双通道无缓冲 DDR4 SDRAM DIMM 插槽 (系统最大 64 GB) |
|
Ethernet
|
Intel® I211AT 以太网控制器 |
|
Power Supply
|
AC 输入 ATX 电源 |
| 1. 250 W 电源 | |
| - 输入: 115VAC~230VAC, 50/60Hz | |
| - 输出 (最大值): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A | |
| 2. 350 W 电源 (按订单生产) | |
| - 输入: 115VAC~264VAC, 50/60Hz | |
| - 输出 (最大值): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A | |
| - 功效: 满载 (100%) 87%, 典型负荷 (50%) 90%, 轻负荷 (20%) 87% | |
|
Operating Temperature
|
-20°C ~ 50°C (带 SSD 和 TDP 65W 处理器) |
| -20°C ~ 40°C (带 HDD 或 无风扇的附加卡) | |
|
Safety & EMC
|
CE, FCC, CCC |
|
Humidity
|
5% ~95%, 无冷凝 |
|
Storage Temperature
|
-30°C ~ 60°C |
|
IP Level
|
符合 IP66 标准的前面板 |
|
Color
|
前框: 青蓝色 (PSM 296C); 其它: 黑色 C |
|
Mounting
|
面板/机架安装 |
|
Dimensions (LxWxH) (mm)
|
378.5x303x118 |
|
Net Weight
|
7.3 |
|
Cutout Dimensions
|
361.1x285.6 |
|
Storage
|
4 x 热插拔 SATA 6G/s HDD/SSD 托架 (支持 RAID 0/1/5/10) |
| 2 x M.2 M-key (2280, PCIe 3.0 x4), 支持 NVMe SSD | |
|
Expansion Slots
|
2 x PCIe 3.0 by 8 (by 16 插槽) |
| 2 x PCIe 3.0 by 4 ( 支持的最大卡尺寸: 68 mm x 167 mm) | |
|
Touch Screen
|
10点投影电容式触摸窗口, 6H |
| (防紫外线, 防眩光表面) | |
|
Touch Controller
|
EETI EXC3188 |
|
TPM
|
支架(2x10pin, P=2.54mm) |
|
I/O Interface
|
1 x Mic |
| 1 x Line out | |
| 2 x RS-232 | |
| 6 x USB 3.0 | |
| 1 x HDMI | |
| 2 x LAN | |
| 1 x 重置按钮 | |
| 1 x 电源开关 | |
| 1 x AT/ATX 开关 |
| PPC-F15C-Q370-i3/PC/25-R10 | 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-F15C-Q370-i5/PC/25-R10 | 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-F15C-Q370-i7/PC/25-R10 | 15" 450cd/m² 1024 x768 AI modular Panel PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-F15C-Q370-P/PC/25-R10 | 15" 450cd/m² 1024 x768 AI modular Panel PC , Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
