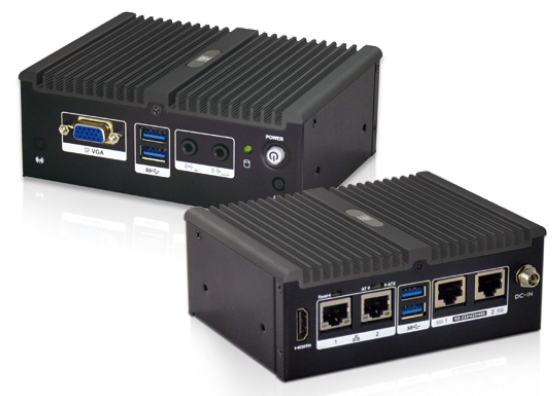

> 产品 > 微小型系统 > uIBX-250-BW| ● Fanless system with Intel® Celeron® N3160 processor |
|
● Dual display
|
|
● Two RS-232/422/485
|
|
● Full-size PCIe Mini slot for expansion
|
|
● Four USB 3.0 ports
|
|
● Two GbE LAN ports
|
产品规格
|
SBC Form Factor
|
CPU:Intel® Celeron® N3160 |
| (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) | |
| Chipset:SoC | |
| System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM | |
| (system max: 8 GB) Pre-installed 2 GB | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
1 x 2.5' SATA 6Gb/s HDD/SSD drive bay |
|
Buttons
|
1 x Power button, 1 x AT/ATX switch |
|
Indicators
|
HDD |
|
I/O Ports
|
4 x USB 3.0 |
| Ethernet: | |
| 2 x RJ-45 PCIe GbE by Intel® I211 controller | |
| 2 x RJ-45 RS-232/422/485 | |
| 1 x HDMI, 1 x VGA | |
| 1 x Line-out, 1 x Line-in | |
|
Operating Temperature
|
-20°C ~ 60°C with air flow |
|
Humidity
|
10% ~ 95%, non-condensing |
|
Dimensions
|
136.6 x 102.4 x 52 |
|
Weight
|
470 g/1.4 kg |
|
Color
|
Black |
|
Expansion Slots
|
1 x Full-size PCIe Mini card |
| uIBX-250-BW-N3/2G-R20 | Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS |
