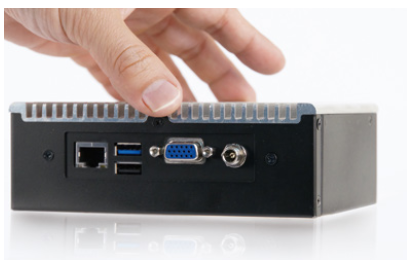

> 产品 > 微小型系统 > uIBX-230-BT| ● Ultra compact size embedded system |
|
● Intel® Celeron® processor N2930 1.83 GHz
7.5W on-board
|
|
● 1 x 2.5'' SATA 6Gb/s HDD/SSD drive bay
|
|
● DDR3L SO-DIMM for low power consumption
|
产品规格
|
SBC Form Factor
|
CPU:Intel® Celeron® N2930 1.83 GHz |
| Chipset:SoC | |
| System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
1 x 2.5' SATA 3Gb/s HDD/SSD bay |
|
Buttons
|
- |
|
Indicators
|
- |
|
I/O Ports
|
1 x USB 3.0 |
| 3 x USB 2.0 | |
| Ethernet: | |
| 1 x RJ-45 | |
| 1 x PCIe GbE by Intel® I210 | |
| RS-232:1 x DB-9 | |
| Display:1 x VGA | |
| Resolutio: 2560 x 1600 | |
| Audio:1 x Line-out, 1 x Mic-in | |
|
Operating Temperature
|
-20°C ~60°C with air flow (SSD) |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Construction
|
- |
|
Dimensions
|
135.6 x 102.8 x 47 |
|
Weight
|
470 g/1.4 kg |
|
Color
|
Silver |
| uIBX-230-BT-N2/2G-R11 | Fanless embedded system , Intel Bay-Trail N2930 1.83GHz, TDP 7.5W, 2GB DDR3L pre-installed memory , 1 x VGA, 1 x RS-232, 12V DC, R11;RoHs |
